Input: 100-240V ~, 50-60Hz,65w
Output: 21Vd.c. 2.3A
Battery: 20V/4.0Ah
Average Charging time: 140min
Average Working time: 100min
Cutting Height: 20-60mm
Cutting Width: 160mm
Max Cutting Slope: 35%(20°）
Cutting Motor: Brushed Motor
Cutting Motor Speed: 3100/min
Driving Motor: Brushed with gearbox
Waterproof rating: IPX5
Max Mowing Area: 200sqm
Replaceable Battery
Visual Sensor+AI: Wire free
Smart Obstacle avoidance
Manually cutting height adjustment
Rain Sensor
Easy to operate
Net Weight: 6.5KG

Detail photo

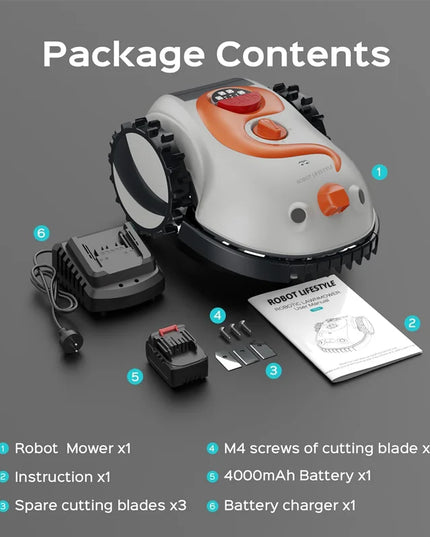

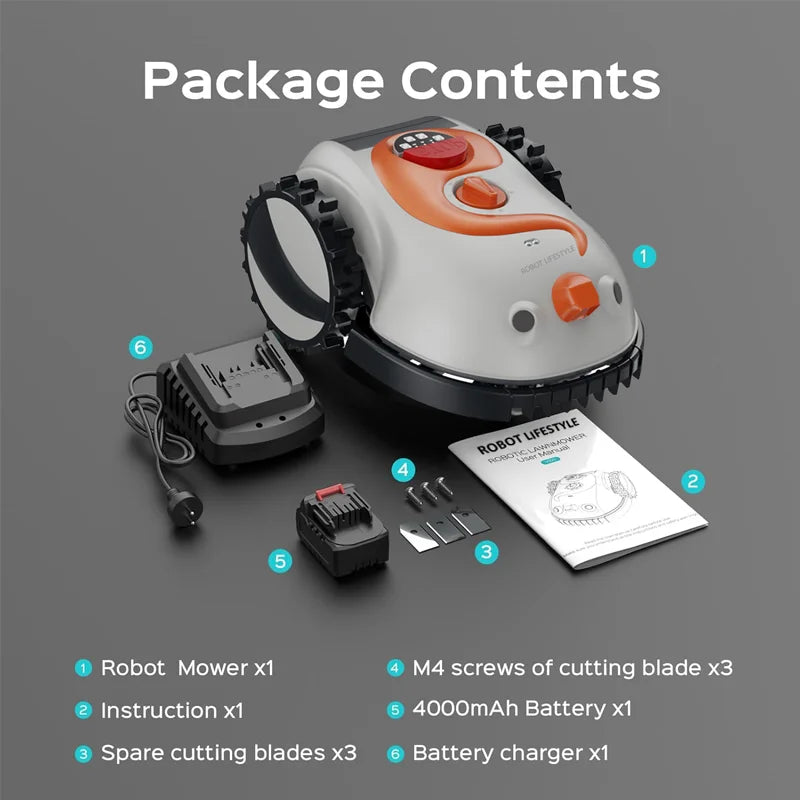

What's in the box?

1.Mower * 1pc
2.Battery charger * 1pc
3.Battery * 1pc
4.Cutting Blades * 3pcs
5.M4 screws of cutting blade * 3pcs
6.Instruction*1pc

Control panel
STOP Button
Scale Knob Cover
Rain Senor
Visual sensor +Al
Ultrasonic sensor

Driving Wheel
Protection Disc
Blade Disc
Blade
Caster

Planning and Preparation

• The height of grass is no more than 60mm. NOTE: If the original grass is higher
than 60mm, please use a manual mower to cut your lawn in advance.
• No stones, loose pieces of wood, wires, live cables, and other foreign objects.
▪ Level and flat working area, no ditch or trench, slope less than 35%(20°)
Ensure that the following conditions are met in the working area of the mower:

Operation

Adjust the cutting height
Before mowing for the first time, please set the mowing height to 60mm, and then
adjust it to the
desired height when the whole lawn is relatively flat.
• Clockwise rotation to increase the cutting height.
• Counterclockwise to decrease the cutting height
• The cutting height of the mower can be adjusted from MIN (20 mm) to MAX (60
mm)

Instruction of control panel

—Long press the power button to start. Note: When starting, do not shake the
mower to avoid start-up failure. If it fails (all indicators are on solid), please start again.
—Enter the loading interface The three indicators flash one by one ,
and the machine is in the initialization state for about 15 seconds.
—When the indicators not flash, the mower is in standby mode. Input the start button
a and input OK button At this time, the mower rings three time di-di-di , the
mower start to cut grass.
—The power indicator : When the charge is more than 20%, the green light.
Less than 20%, the red light,the mower stop work and need to charge. When the
mower is running, the charge less than 20%, the mower will stop work.
—The alarm indicator : When the mower will be error, the light always red. Press
the OK button or STOP button can clean errors. When the mower has a serious error,
the light flashes red, the mower must be restarted.
—The Ultrasonic indicator light : When the mower is in standby mode and
running mode, via pressing the ultrasonic button to open or close the ON/OFF
state. When the open ultrasonic state, the green light ; when the close ultrasonic state,
the light is not on. When the mower is in the alarm state, the ultrasonic light flashes,
and the error code can be determined by the number of ultrasonic light flashes.

Turn off the mower

Press “STOP” to stop the mower, long press power button
to stop, turn off the main power if needed.

Carry the Mower

Under the mower, a lifting handle is reserved for easy one handed handling of the
mower

Battery pack and charger

a. Charing the battery
Before the first charging should be fully charge. A fully discharged battery pack
with a temperature between 0°C and 40°C will charge in about 2 hours.
• Charge the battery pack only with the correct charger(
• Connect the charger to a power supply.
• Insert the battery pack into the charger, making sure the battery pack is
fully seated.
• The red light on while the battery pack is charging. After charging
completed, the green light on .
• After approximately 2 hours., battery is fully charged.
Unplug the charger, and then remove the battery pack.

WARNING: Never use a damaged battery pack.
WARNING: Always disconnect the charger from the power source when it
is not in use.

NOTE: The battery pack and charger will become slightly warm to the touch
while charging. This is normal and does not indicate a problem.

NOTE: If you wish to charge two battery packs in succession, unplug the
charger and allow at least 15 minutes between charges.

WARNING:
--The charger supplied is matched to the battery installed in the mower
. Do not use another charger.(Fig.6-2)
--During the charging procedure, the battery warms up, this is normal.

b. Insertion and removal of rechargeable battery
Depress the battery-release button located on the battery padck to
release battery pack.
Pull the battery pack out and remove it from the mower.

Feature

- Cutting area: 200-300m²
- Function Settings: Keyboard
- Cutting Height Settings: Manually
- Charging Type: Battery charger
- Anti-collison sensor: Bumper sensor +Visual sensor+AI
-Safeguard: Life Stop / Tilt Stop / Emergency Stop
- Battery Settings: Plugable Battery

Functions

- Boundary Collision: YES
- Rain Sensor: YES
- Cutting Height: 20-60mm
- Cutting Diameter: 160mm
- Hill Capability: Max slope 20 degree
- Motor Type: 2*Brushed Walking Motors + 1* Brushless Cutting Motor
- Gyroscope :YES
- Straight Cut mode: YES
- Spiral Cut mode: YES
- Emergency STOP Switch: YES
- Cuts to Edge: YES

Battery
- Type of Battery: Lithium
- Rated Voltage: Max 20V
- Battery Capacity: 4000mAh
- Charging Time: 140mins
- Average working time: 80mins

Power Adapter
- Input: 100-240V ~, 50-60Hz,65w
- Output: 21Vd.c. 2.3A

Other Parameters
- Waterproofed: IPX4
- Certificate: GS&CE&Rohs
- Measurement: 58.6x45.6x31.6cm
- Weight: 6.5 Kg
